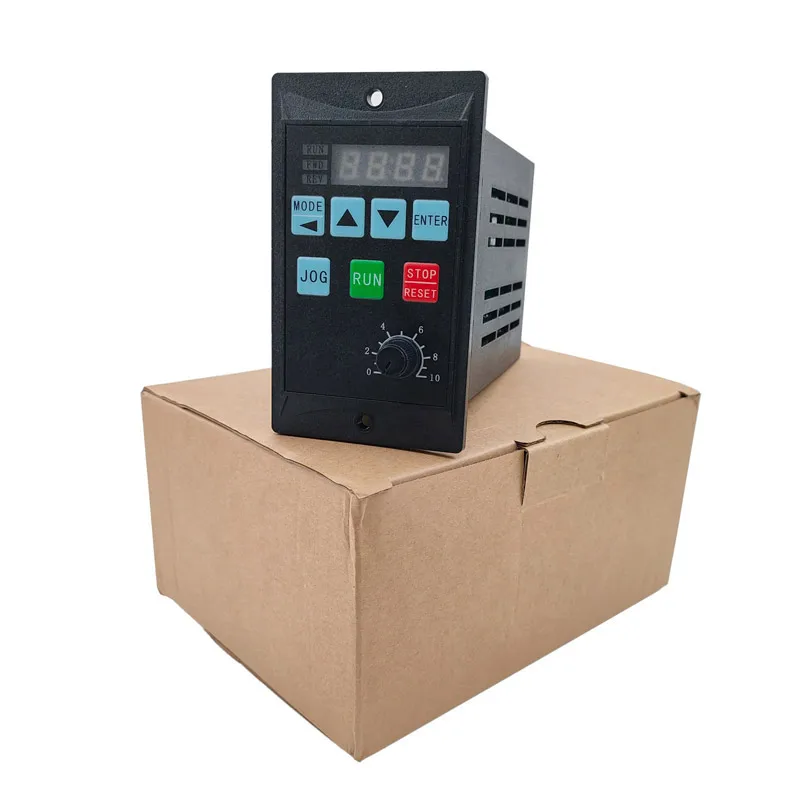

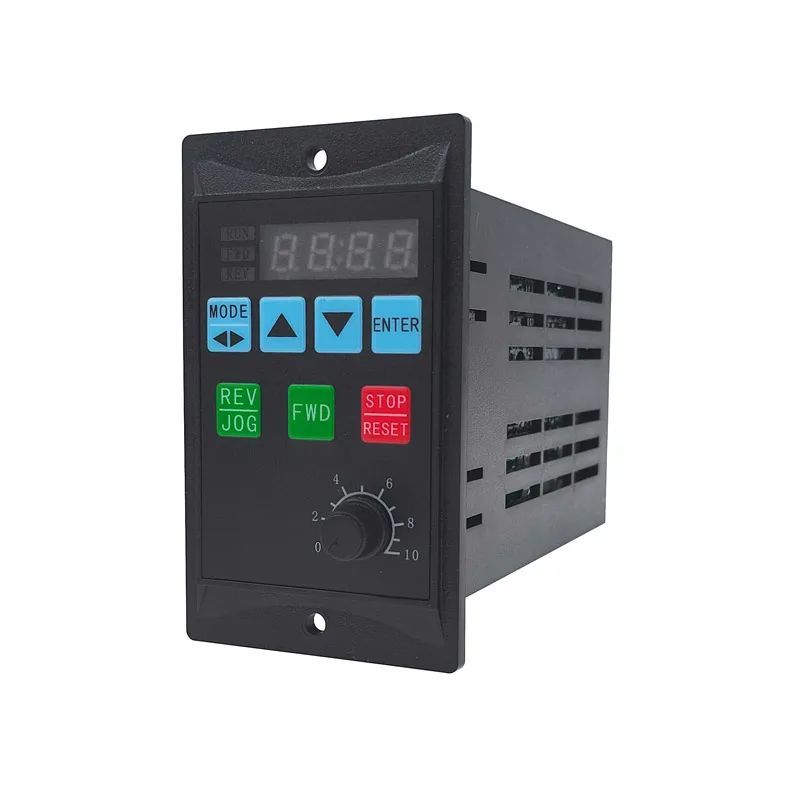

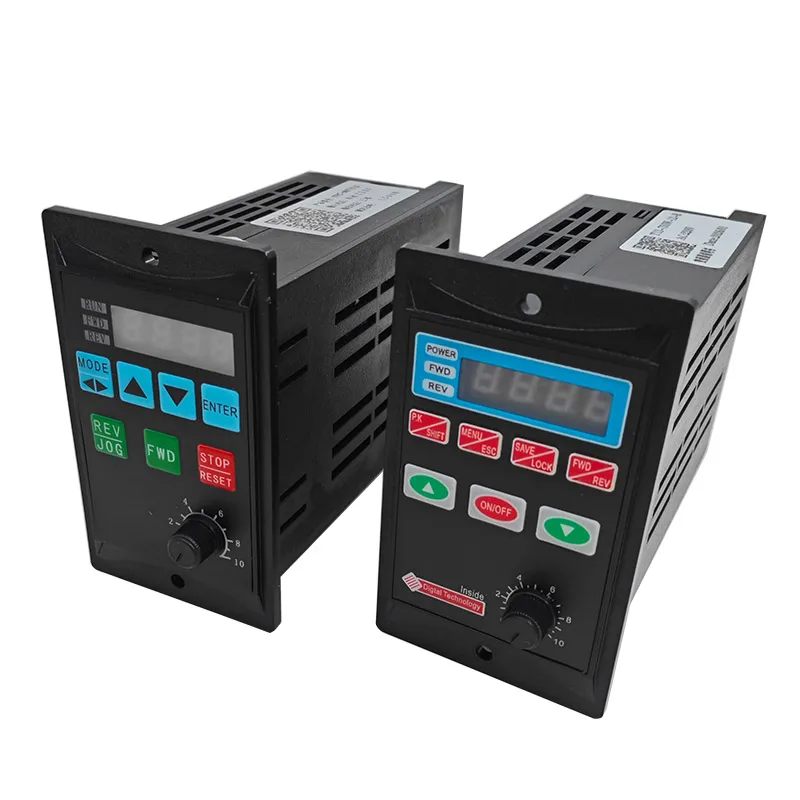

Name: Frequency Converter Electric Inverter 1500W RS485 Add Motor Driver 0.75KW 1.5KW MCU Single Phase Input 220V 3-Phase Output 0.4KW
SKU: Z939620M4BF8
Availability: InStock

Description

Note:These mini frequency converters are not recommended to operate at full load, for example, 1500W frequency converters should be operated below 1500W as much as possible, otherwise it may cause excessive temperature.Electric Inverter User ManualChapter I OverviewThis manual is intended for installation, commissioning, maintenance and use by the user.————————————————————————————————————————1.Unpacking inspectionRemove the Inverter from the box and confirm that: Whether the product appearance is damaged ordeformed: Whether the components are damaged or fall off: Observe the rating of the nameplate on the chassis side and check whether it is consistent with your order requirements: Check whether the items listed in the packing list box are complete. If there is any doubt about the product damage, please contact the supplier immediately.————————————————————————————————————————2.Please read it carefully before use and keep it properly. ————————————————————————————————————————3.Use environment.Power supply : Single input AC220V±40%Temperature: -10℃- 50℃Humidity: 0% – 65%————————————————————————————————————————4.PrecautionsWhen wiring, the power supply must be turned off.Make sure that AC power is never connected to the motor output.————————————————————————————————————————5.There is no condensation, dust and corrosive liquid/gas on the site. ————————————————————————————————————————6.The installation position shall be firm and free from vibration.————————————————————————————————————————7.As the overall size is small, please handle the wire ends properly. ————————————————————————————————————————8.If the ambient temperature is high, please leave enough heat dissipation space. ————————————————————————————————————————Chapter II Installation and wiring Opening size: 52.5mm*80mm*130mm

Additional information

Weight	0,450 kg
Dimensions	13 × 17 × 9 cm
Brand Name	CNMAWAY
High-concerned chemical	None
Type	DC/DC Converters
Origin	Mainland China
Size	60100130mm
Output Frequency	0-99.0HZ
Output Type	triple
is_customized	None
Output Current	/
Output Power	500 – 1000W
Weight	0.5kg
Model Number	400W 750W 1500W
